Description
Xpander Elite
CUBX-XPRM-X16-ELITE4A
Specifications
Xpander Elite

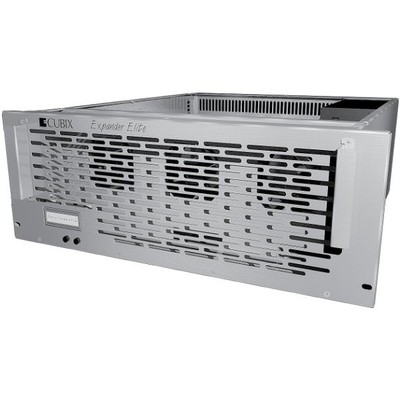

New from Cubix Corporation! Xpander Elite
Add 6 full-length, full-height PCI Express slots to your current broadcast production set Mac Pro or PC workstation instead of replacing it!
Xpander Elite is a 4U, 19" rackmount PCIe slot expansion solution designed for broadcasters and digital cinema production sets which require plenty of additional power and PCIe slots, while maintaining a small physical footprint and whisper-quiet operations. Using only one PCIe x16 slot in a host PC or Mac Pro, Xpander Elite provides you with six additional full-length, full-height PCIe slots for multiple NVIDIA graphics cards, SDI capture cards from Blackmagic Design, Aja, NVIDIA, and others. Add multiple RED Rocket cards, high-performance NVIDIA Quadro Series graphics by PNY by PLUS fiber optic HBAs, RAID controllers, PCIe-based SSDs - all of the above using only 1 slot in the host workstation or server! Cubix bases Xpander Elite on its popular GPU-Xpander product line, but adds integrated remote management, front panel LCD system status read-out and control interface, 1500W power supply, and four variable speed, temperature-controlled exhaust fans for cooling even the most demanding PCIe devices. This means one Xpander Elite can process up to 12 HD-SDI data streams simultaneously (depending upon application and capture devices used) while operating in near silence within mobile production rack cabinets with its host workstation and 3rd party storage systems.
Applications for Xpander Elite include:
Production broadcasting or cinema applications requiring high-performance GPUs, SDI or HD-SDI audio/video capture cards from Blackmagic Designs®, AJA, and NVIDIA DaVinci® Resolve color correction
Assimilate Scratch
Adobe® CS6 (After Effects 3D ray-tracing, Mercury Engine)
GPU-accelerated rendering products such as V-Ray RT 2.0+, SHOT / MOVE, iRay, Arion, and others
Technical Specifications
Expansion slots
PCI Express Gen 2
Number of slots
8 slots with electrical power and 6 with PCIe data support
PCIe x16 slots
4 x16 mechanical / electrical slots
PCIe x8 slots
2 x16 mechanical / x8 electrical slots
PCIe x4 slots
2 x4 slots with electrical power but no PCIe data support
Form factor support
8 full-length, full-height controllers
Double-wide
4 PCIe x16 GPUs powered
Single-wide
2 PCIe x8 cards powered
Single-wide
2 PCIe x4 cards electrical power but no PCIe data support
Connecting cable
External PCIe x16, 136-pin cable
Length, standard
2.00meters (78.74inches or 6.56feet)
Length, optional
1.00meter (39.37inches or 3.28feet)
Length, optional
3.00meters (118.11inches or 9.84feet)
Connector duty cycle
250 mating cycles maximum per connector
PCIe x16 HIC
Host interface controller, install in a PCIe x16 slot
PCIe Gen 2 slot
Provides a theoretical 80Gbps data transfer rate
PCIe Gen 1 slot
Provides a theoretical 40Gbps data transfer rate
Front panel LCD
Main menu = left button; sub-menu = right button (See detail on page 7.)
Cubix Corporation
MIB assembly and revision; management firmware revision
Power supply status
Standard main power; optional redundant power
Temperature status
3 sensor readouts in degrees Centigrade (C)
Fan status
Fan status, voltage percent (%) speed
PCIe link status
x16 cable connected; 2.5Gbps or 5.0Gbps x16 link speed
x16 cable
Connected or not connected status
Slot 3 - 6 x16 transfer rate, theoretical
PCIe Gen 2, 5.0Gbps x16 = 80.0Gbps PCIe Gen 1, 2.5Gpbs x16 = 40.0Gbps
Slot 1 - 2 x8 transfer rate, theoretical
PCIe Gen 2, 5.0Gbps x8 = 40.0Gbps PCIe Gen 1, 2.5Gpbs x8 = 20.0Gbps
LCD panel backlight
Toggle on / off using right button
Rear panel
1 power input receptacle and device I/O
Cooling fans
4 fans each run at 112cfm (cubic feet per minute) maximum
Initial power up
25C degrees
Fan speed, minimum
50C degrees
Fan speed, maximum
Fan speed, in range
25C degrees to 50C degrees in progression with sensed temperature
AC power supply
Single-phase, auto-ranging, 100-240VAC, 10-5Amps, 50/60Hz; total output power is not to exceed 1,500Watts
Operating environment
0° to 30° Celsius (32° to 86° Fahrenheit) temperature 5% to 80% non-condensing humidity
Dimensions (4U)
7.00" H x 19.00" W x 21.50" D (17.78cm H x 48.26cm W x 54.61cm D)
Warranty / Period
Parts & labor return to manufacturer / 2 year
Ext. warranty period
Optional 3 years
