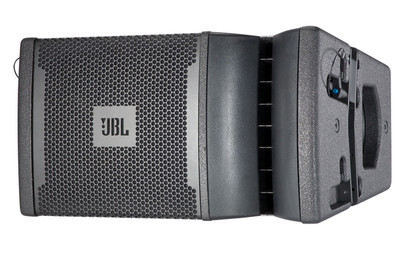

JBL VRX928LA 8 in. Two-Way Line Array Loudspeaker
The VRX928LA is a lightweight (28 lb / 13 kg) compact 8" two-way linearray speaker system designed for use in arrays of up to six units.
Features :
- Constant Curvature Array - The waveguide mounts three compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.
- Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.
- Suspension and Rigging.
- Dual Angle Pole Socket - JBL's dual angle pole sockets allow great flexibility in aiming the enclosure.
- Differential Drive® Woofer
Specifications :
- Input Connectors: Neutrik® Speakon NL-4 (x2)
- Power Rating : 400 W / 800 W / 1600W
- Frequency Range : 57 Hz - 20 kHz (-10 dB)
- Dimensions (H x W x D) : 230 mm x 420 mm x 270 mm
9.0 in x 16.5 in x 10.5 in
- Coverage Pattern : 100 x 15 nominal
- Frequency Response : 75 Hz - 20 Hz (+/-3db)
- Crossover Modes : 4 Ohms Bi-amp / passive,
- Crossover Frequency : 132 dB SPL peak 1.2 kHz
