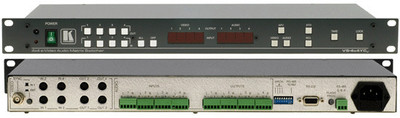

For Any Question, Please call 1-714-749-1371, ask for Shawn       Store home  Avid Adrenaline Avid DS Nitris  Avid Media Composer Soft Avid Meridien Avid Parts  Avid Storage  Avid Symphony Nitris  Avid Unity Avid Liquid HD  Other Items     Store | Auctions | About Us | Policies | Contact   We Provide a full-range of professional production equipment and services with emphasis on digital media science in Post Production. International  DSM Group can help you build and customize your media technology business network, from individual workstations accessorizing complete broadcast HD and film facility level.   Description    Kramer VS-4X4YCXL Video Audio Matrix Router             Specifications   The Kramer VS-4x4YCxl is a true 4 x 4 matrix switcher for s-Video signals and balanced stereo audio signals. The high quality VS-4x4YCxl lets you simultaneously route any or all of the 4 inputs to any or all of the 4 outputs. It features video bandwidth of 75MHz to ensure transparent video performance; and has easy-to-connect, detachable terminal block connectors for the audio signals. Inputs and outputs are DC coupled. The VS-4x4YCxl produces glitch-free transitions when sources share a common reference sync, as switching occurs during the vertical interval. The VS-4x4YCxl also includes: audio-follow-video and breakaway options; the storing and recalling of setups; and gain control for all inputs and all outputs. The VS-4x4YCxl can be controlled via the front panel buttons; the infra-red remote control transmitter; and via RS-485 or RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller. The VS-4x4YCxl is housed in a 19" 1U rack-mountable enclosure, and is fed from a 100-240 VAC, 50/60Hz switching power supply. FEATURES: Bandwidth (Y) - 75MHz (- 3dB) fully loaded. Control - Front panel, RS-232 (included K-RouterT Windowsr - based software is included), & RS-485, IR Remote (included). Front Panel Control Lockout. Take Button - Execute multiple switches all at once. Memory Locations - Store multiple switches as presets (salvos) to be recalled and executed when needed. Audio Gain Level Controls - Input and output via RS-232. Audio Breakaway Switching. Vertical Interval Switching. Switching Synchronization - Synchronize either to external reference or the incoming video. Selectable Sync Signal Termination. Worldwide Power Supply - 100-240V AC. Standard 19" Rack Mount Size - 1U. TYPICAL APPLICATIONS: Professional video display and monitoring systems requiring true 4x4 matrix operation. Multimedia and presentation source and acceptor selection. Production and video editing studios. SPECIFICATIONS: INPUTS: 4 s-Video, 1 Vpp/75O (Y), 0.3Vpp/75O © on 4p connectors. 4 balanced stereo audio, +4dBm/25kO on detachable terminal blocks. OUTPUTS: 4 s-Video, 1 Vpp/75O (Y), 0.3Vpp/75O © on 4p connectors. 4 balanced stereo audio, +4dBm/47O on detachable terminal blocks. MAX. OUTPUT LEVEL: VIDEO: 2.5Vpp | AUDIO: +19dBm BANDWIDTH (-3dB): VIDEO: 75MHz, Fully Loaded | AUDIO: 28kHz DIFF. GAIN: <0.02% DIFF. PHASE: <0.02 Deg K-FACTOR: <0.05% S/N RATIO: VIDEO: 82dB | AUDIO: 74dB CROSSTALK (all hostile): VIDEO: -61dB @ 5MHz/AUDIO: -70dB @ 20kHz CONTROLS: Audio gain level control by K Router software, -91dB to +26dB. Front panel touch switches, RS-232, RS-485, IR. COUPLING: VIDEO: DC | AUDIO: DC at input, AC at output AUDIO THD + NOISE: 0.081% AUDIO 2nd HARMONIC: 0.044% POWER SOURCE: 100 240 VAC, 50/60 Hz; 90mA switching power supply DIMENSIONS: 19-inch (W), 7-inch (D) 1U (H) rack-mountable  ACCESSORIES: Power cord, Null modem adapter, Windowsr based Kramer control software, Infra-red remote control transmitter   Item Condition   NEVER USED BRAND NEW SYSTEM Full Hardware Warranty         Shipping Agreement   Buyer will pay actual shipping costs,  including extra for packaging only if needed.  Shipping costs based on weight TBD after auction.  Item(s) will be shipped via UPS, FedEx.   ( Insured )         Payment Information   Paypal, wire transfer or a cashier check accepted,  guarantees immediate shipping upon receipt and verification. Payment must be received within 3 days of the closing auction,            Terms & Conditions   Please e-mail or call for any questions prior to bidding. 1-714-749-1371 We reserves the right to refuse a winning bid from a buyer with numerous negative feedback.  International DSM Group reserves the right to cancel the auction  if bid retractions occur during last 24 hours of auction.  AVT01
