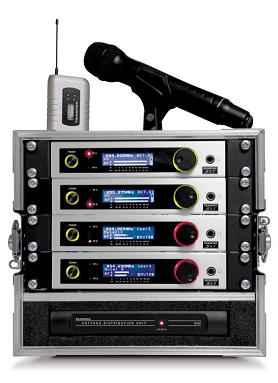

TRANTEC 4 Way S5.3 QUBE "Racked n Ready" System

BRAND NEW with FULL UK Warranty

Authorised Trantec UK Main Dealer

Manufacturers RRP £3251.05 inc. vat

This system is BRAND NEW in a custom built flight case from one of the world leaders in UHF Microphone Technology.

The system comprises of:

1 No: Qube Hexaboard Flightcase
4 No: S 5.3 RX
1 No: S4000 ADU
1 No: PSU 5 Way
1 No: 5 Way PSU Splitter Cable
2 No: RX Antennae
8 No: ADU/RX Link Cable
4 No: Make any configuration of either Handheld Dynamic or Belt Pack TX c/w LP-2 Lavalier Mic

Product overview:

• High quality, true-diversity operation
• Up to 12 Simultaneous Channels
• Frequency scan facility
• USB based computer monitoring
• Integral triple tone grip/noise and signal strength mute circuit
• Simple programming of transmitter with in-built Infra-red
• Clear and intuitive LCD displays on both transmitters and receivers
• Single AA operation of transmitters with battery life of over 10 hours
• Credit card size beltpack transmitters
• Professional metal enclosures for both transmitters and receiver

Technical Specification

S5.3 System Specification

RF Bands available:	D2 854-865MHz Other frequency bands available on request
AF Frequency response:	50Hz – 20KHz

Fully meets the requirements of ETSI 300-422 and FCC Pt74.

S5.3RX Receiver

Fully Synthesised UHF dual conversion Receiver with features including. Graphic LCD, display jog wheel, IR data link and headphone monitor.

Type:	Dual Diversity featuring PLL Dual conversion receivers
IF Freq:	1st IF 55.875MHz, 2nd IF 10.7MHz
Sensitivity:	<1 μV/12dB SINAD
1st Image:	>7dB
RSSI range:	10 steps 30dB range
Antenna Inputs:	TNC 50 Ohm
Output Level:	XLR Line +15dBm max. Mic -25dBm max. Unbal 1/4" jack socket +9dBm max
Rear Panel connections:	RF input/output, AF XLR and ¼” Jack output, PC USB port, DC jack.
Antenna Phantom:	9V @ 60mA short circuit protected on each RF port
Bank Specification:	9 Banks x 12 Channels
Infra-Red Link:	Range 15cm max
Computer Interface(USB):	Monitoring of RF, AF and Transmitter Battery status
Rear Panel connections:	RF input, AF XLR and ¼” Jack output, PC USB port, DC jack.
Power Consumption:	300mA @ 12Vdc nominal
Enclosure type:	19” 1U  ½ width Rack.

S5.3LTX Beltpack Transmitter

Fully Synthesised UHF Transmitters with features including: Integral LCD, IR data link, Battery status indicator, Audio multistage attenuator.

Battery Life:	10Hrs Typical, AA Single cell.
Beltpack AF connector:	4 pin mini XLR.
Audio Input range:	-20dbm - +7dBm
Microphone Bias Voltage:	> 5V
RF Bandwidth:	< 200KHz
Antenna Type:	¼ Wave Whip.
Enclosure type:	Full metal construction

S5.3HTXD Handheld Transmitter

Fully Synthesised UHF Transmitters with features including: Integral LCD, IR data link, Battery status indicator, Audio multistage attenuator, Microphone mute switch.

Battery Life:	10Hrs Typical
Handheld Cartridge type	High quality directional Dynamic or Condenser capsule.
RF Bandwidth:	< 200KHz
Antenna Type:	Integral
Enclosure type:	Full metal construction
Battery Type	AA Single cell.

Any questions please email: [email protected] or call on 08450 944 122 / 07880 707 008
