IM804 HIGH VOLTAGE MINIATURE MICRO STEPPING DRIVER

Features:

•   Extremely Small 2.7 x 3.0 in.
•   High Input Voltage (75Vdc)
•   High Output Current(4 Amps RMS, 6 Amps Peak)
•   Single Supply
•   Advanced Surface Mount and ASIC Technology
•   Pin and Footprint Compatible with the IM483
•   Designed for High Performance, Low Inductance Motors
•   Opto-Isolated Inputs
•   20 kHz Chopping Rate
•   Up to 10 MHz Step Clock Rate
•   14 Selectable Micro-stepping Resolutions Can Be Changed On-The-Fly
•   Up to 51,200 Steps/Rev with 1.8° Motor
•   Automatically Switches between Slow and Fast Decay for Unmatched Performance
•   At Full Step Output
•   Adjustable Automatic Current Reduction
•   Short Circuit, Over/Under Voltage and Over Temperature Protection
•   Fault Output
•   Fault and Power LED'

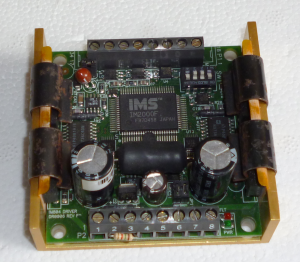

This is a stepping motor driver in Excellent Condition. It has been tested on our bench and makes sure 100% working correctly in any conditions as you can see in below video.
