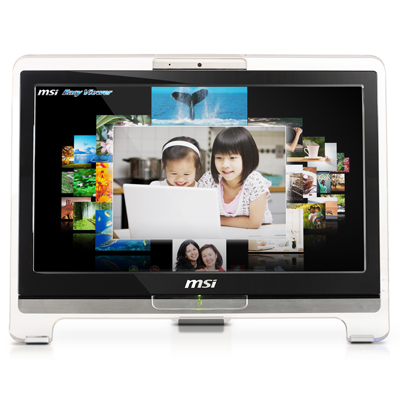

MSI Wind Top AE1900-14SUS 18.5" Intel Atom 230(1.6GHz) 1GB DDR2 160GB Intel GMA 950 Windows XP Home - Retail
MSI Web Site
| General Spec |
| Brand |
MSI |
| Series |
Wind Top |
| Model |
AE1900-14SUS |
| Type |
All-in-One PC |
| Processor |
Intel Atom 230(1.6GHz) |
| Cache Per Processor |
512KB L2 Cache |
| Memory |
1GB DDR2 533 |
| Hard Drive |
160GB SATA |
| Optical Drive 1 |
Tray-load DVD Super Multi rewriter drive, support dual-layer burning |
| Graphics |
Integrated Intel GMA950, Share memory up to 228MB |
| Audio |
HD Audio, 2.0 Speakers with SRS Premium Sound |
| Ethernet |
Gigabit LAN |
| Wireless Card |
802.11b/g/n |
| Power Supply |
External 65W Power Adapter with Active PFC |
| Monitor |
Size: 16.13" (H) x 9.07" (V) (18.5" diagonal)
Anti-glare
Resolution: WXGA (1366 x 768 pixels)
Surface: 3H Hard-coating
Brightness: 250cd/m2
Contrast Ratio: 1000:1
Viewing Angle: 170° Horizontal, 160° Vertical
Color: 16.7 millions of colors
Response: 5 ms
Pixel Pitch: 0.3mm (H) x 0.3mm (V) |
| Keyboard |
Color-matched multimedia keyboard |
| Mouse |
Color-matched mouse |
| Operating System |
Windows XP Home |
| Special Features |
1.3MP Webcam with Microphone |
| Motherboard |
| Chipset |
Intel 945GC |
| CPU |
| CPU Type |
Intel Atom |
| CPU FSB |
533MHz |
| CPU Speed |
230(1.6GHz) |
| L2 Cache Per CPU |
512KB |
| Graphics |
| GPU/VPU Type |
Intel GMA 950 |
| Graphics Interface |
Integrated video |
| Memory |
| Memory Capacity |
1GB DDR2 |
| Memory Speed |
DDR2 533 |
| Memory Slot (Available) |
No memory slot available
Since the AE1900 is a highly-integrated all-in-one PC, its system memory chips are mounted on the motherboard. Hence, there is no memory slot available for upgrade. |
| Hard Drive |
| HDD Capacity |
160GB |
| HDD Interface |
SATA |
| HDD RPM |
5400rpm |
| Optical Drive |
| Optical Drive Type |
DVD Super Multi |
| Optical Drive Spec |
Tray-load DVD Super Multi rewriter drive, support dual-layer burning |
| Audio |
| Audio Chipset |
Integrated |
| Display Spec |
| Screen Size |
18.5" |
| Communications |
| LAN Chipset |
Integrated |
| LAN Speed |
10/100/1000Mbps |
| WLAN |
802.11b/g/n Wireless LAN |
| Front Panel Ports |
| Front USB |
2 |
| Card Reader |
4-in-1 Card Reader (support SD/MMC/MS/XD) |
| Back Panel Ports |
| Rear USB |
2 |
| RJ45 |
1 port |
| Physical Spec |
| Dimensions |
18.74" x 14.37" x 1.93" |
General Spec :
Brand MSI
Series Wind Top
Model AE1900-14SUS
Type All-in-One PC
Processor Intel Atom 230(1.6GHz)
Cache Per Processor 512KB L2 Cache
Memory 1GB DDR2 533
Hard Drive 160GB SATA
Optical Drive 1 Tray-load DVD Super Multi rewriter drive, support dual-layer burning
Graphics Integrated Intel GMA950, Share memory up to 228MB
Audio HD Audio, 2.0 Speakers with SRS Premium Sound
Ethernet Gigabit LAN
Wireless Card 802.11b/g/n
Power Supply External 65W Power Adapter with Active PFC
Monitor Size: 16.13" (H) x 9.07" (V) (18.5" diagonal)
Anti-glare
Resolution: WXGA (1366 x 768 pixels)
Surface: 3H Hard-coating
Brightness: 250cd/m2
Contrast Ratio: 1000:1
Viewing Angle: 170° Horizontal, 160° Vertical
Color: 16.7 millions of colors
Response: 5 ms
Pixel Pitch: 0.3mm (H) x 0.3mm (V)
Keyboard Color-matched multimedia keyboard
Mouse Color-matched mouse
Operating System Windows XP Home
Special Features 1.3MP Webcam with Microphone
Motherboard
Chipset Intel 945GC
CPU :
CPU Type Intel Atom
CPU FSB 533MHz
CPU Speed 230(1.6GHz)
L2 Cache Per CPU 512KB
Graphics:
GPU/VPU Type Intel GMA 950
Graphics Interface Integrated video
Memory
Memory Capacity 1GB DDR2
Memory Speed DDR2 533
Memory Slot (Available) No memory slot available
Since the AE1900 is a highly-integrated all-in-one PC, its system memory chips are mounted on the motherboard. Hence, there is no memory slot available for upgrade.
Hard Drive:
HDD Capacity 160GB
HDD Interface SATA
HDD RPM 5400rpm
Optical Drive
Optical Drive Type DVD Super Multi
Optical Drive Spec Tray-load DVD Super Multi rewriter drive, support dual-layer burning
Audio
Audio Chipset Integrated
Display Spec
Screen Size 18.5"
Communications :
LAN Chipset Integrated
LAN Speed 10/100/1000Mbps
WLAN 802.11b/g/n Wireless LAN
Front Panel Ports
Front USB 2
Card Reader 4-in-1 Card Reader (support SD/MMC/MS/XD)
Back Panel Ports
Rear USB 2
RJ45 1 port
Physical Spec
Dimensions 18.74" x 14.37" x 1.93"
| General Spec |
| Brand |
MSI |
| Series |
Wind Top |
| Model |
AE1900-14SUS |
| Type |
All-in-One PC |
| Processor |
Intel Atom 230(1.6GHz) |
| Cache Per Processor |
512KB L2 Cache |
| Memory |
1GB DDR2 533 |
| Hard Drive |
160GB SATA |
| Optical Drive 1 |
Tray-load DVD Super Multi rewriter drive, support dual-layer burning |
| Graphics |
Integrated Intel GMA950, Share memory up to 228MB |
| Audio |
HD Audio, 2.0 Speakers with SRS Premium Sound |
| Ethernet |
Gigabit LAN |
| Wireless Card |
802.11b/g/n |
| Power Supply |
External 65W Power Adapter with Active PFC |
| Monitor |
Size: 16.13" (H) x 9.07" (V) (18.5" diagonal)
Anti-glare
Resolution: WXGA (1366 x 768 pixels)
Surface: 3H Hard-coating
Brightness: 250cd/m2
Contrast Ratio: 1000:1
Viewing Angle: 170° Horizontal, 160° Vertical
Color: 16.7 millions of colors
Response: 5 ms
Pixel Pitch: 0.3mm (H) x 0.3mm (V) |
| Keyboard |
Color-matched multimedia keyboard |
| Mouse |
Color-matched mouse |
| Operating System |
Windows XP Home |
| Special Features |
1.3MP Webcam with Microphone |
| Motherboard |
| Chipset |
Intel 945GC |
| CPU |
| CPU Type |
Intel Atom |
| CPU FSB |
533MHz |
| CPU Speed |
230(1.6GHz) |
| L2 Cache Per CPU |
512KB |
| Graphics |
| GPU/VPU Type |
Intel GMA 950 |
| Graphics Interface |
Integrated video |
| Memory |
| Memory Capacity |
1GB DDR2 |
| Memory Speed |
DDR2 533 |
| Memory Slot (Available) |
No memory slot available
Since the AE1900 is a highly-integrated all-in-one PC, its system memory chips are mounted on the motherboard. Hence, there is no memory slot available for upgrade. |
| Hard Drive |
| HDD Capacity |
160GB |
| HDD Interface |
SATA |
| HDD RPM |
5400rpm |
| Optical Drive |
| Optical Drive Type |
DVD Super Multi |
| Optical Drive Spec |
Tray-load DVD Super Multi rewriter drive, support dual-layer burning |
| Audio |
| Audio Chipset |
Integrated |
| Display Spec |
| Screen Size |
18.5" |
| Communications |
| LAN Chipset |
Integrated |
| LAN Speed |
10/100/1000Mbps |
| WLAN |
802.11b/g/n Wireless LAN |
| Front Panel Ports |
| Front USB |
2 |
| Card Reader |
4-in-1 Card Reader (support SD/MMC/MS/XD) |
| Back Panel Ports |
| Rear USB |
2 |
| RJ45 |
1 port |
| Physical Spec |
| Dimensions |
18.74" x 14.37" x 1.93" |
| General Spec |
| Brand |
MSI |
| Series |
Wind Top |
| Model |
AE1900-14SUS |
| Type |
All-in-One PC |
| Processor |
Intel Atom 230(1.6GHz) |
| Cache Per Processor |
512KB L2 Cache |
| Memory |
1GB DDR2 533 |
| Hard Drive |
160GB SATA |
| Optical Drive 1 |
Tray-load DVD Super Multi rewriter drive, support dual-layer burning |
| Graphics |
Integrated Intel GMA950, Share memory up to 228MB |
| Audio |
HD Audio, 2.0 Speakers with SRS Premium Sound |
| Ethernet |
Gigabit LAN |
| Wireless Card |
802.11b/g/n |
| Power Supply |
External 65W Power Adapter with Active PFC |
| Monitor |
Size: 16.13" (H) x 9.07" (V) (18.5" diagonal)
Anti-glare
Resolution: WXGA (1366 x 768 pixels)
Surface: 3H Hard-coating
Brightness: 250cd/m2
Contrast Ratio: 1000:1
Viewing Angle: 170° Horizontal, 160° Vertical
Color: 16.7 millions of colors
Response: 5 ms
Pixel Pitch: 0.3mm (H) x 0.3mm (V) |
| Keyboard |
Color-matched multimedia keyboard |
| Mouse |
Color-matched mouse |
| Operating System |
Windows XP Home |
| Special Features |
1.3MP Webcam with Microphone |
| Motherboard |
| Chipset |
Intel 945GC |
| CPU |
| CPU Type |
Intel Atom |
| CPU FSB |
533MHz |
| CPU Speed |
230(1.6GHz) |
| L2 Cache Per CPU |
512KB |
| Graphics |
| GPU/VPU Type |
Intel GMA 950 |
| Graphics Interface |
Integrated video |
| Memory |
| Memory Capacity |
1GB DDR2 |
| Memory Speed |
DDR2 533 |
| Memory Slot (Available) |
No memory slot available
Since the AE1900 is a highly-integrated all-in-one PC, its system memory chips are mounted on the motherboard. Hence, there is no memory slot available for upgrade. |
| Hard Drive |
| HDD Capacity |
160GB |
| HDD Interface |
SATA |
| HDD RPM |
5400rpm |
| Optical Drive |
| Optical Drive Type |
DVD Super Multi |
| Optical Drive Spec |
Tray-load DVD Super Multi rewriter drive, support dual-layer burning |
| Audio |
| Audio Chipset |
Integrated |
| Display Spec |
| Screen Size |
18.5" |
| Communications |
| LAN Chipset |
Integrated |
| LAN Speed |
10/100/1000Mbps |
| WLAN |
802.11b/g/n Wireless LAN |
| Front Panel Ports |
| Front USB |
2 |
| Card Reader |
4-in-1 Card Reader (support SD/MMC/MS/XD) |
| Back Panel Ports |
| Rear USB |
2 |
| RJ45 |
1 port |
| Physical Spec |
| Dimensions |
18.74" x 14.37" x 1.93" |
|
