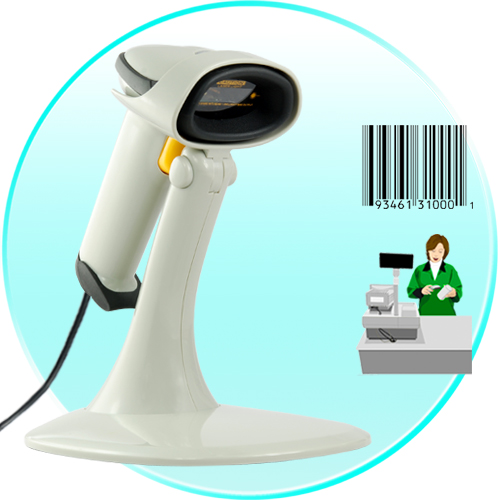

Increase productivity and transform your stock room and warehouse in to an organized dream land with this innovative bar code hand-held scanner.

If you're seeking investment protection and great value in a small light scanner that assures maximum productivity, then the CVKY-G123 is the ideal scanner for you. This Bar Code Scanner with USB for Businesses helps you better organize and maintain your inventory stock. This special bar code scanner can decode EAN-8, EAN-13, UPC-A, UPC-E Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5 and many others codes, allowing you to read all the industry standard bar codes off of all your products and packages.*

Simply connect the bar code scanner to your PC using the USB cable provided, then scan the appropriate UPC code within the instruction manual provided to set your new bar code scanner. This process takes mere minutes and you'll be able to start using you new barcode scanner right away.

Designed with the user in mind and careful ergonomics, this handheld barcode scanner comes especially shaped to be held and operated comfortably. After using the bar code scanner, you don't have to leave it lying on the table, provided with this model G123 is a holder + stand. Bar code systems provide an array of benefits, including operational efficiency, better customer service, and improved visibility of key business information to management.

Simplicity, Implementation & Cost Effectiveness: Operators of barcode scanners can learn to use the equipment effectively in less than 20 minutes, and this in turn will reduce system costs for manual labor. Bar code provide the highest level of reliability in a wide variety of data collection applications. Bar code systems create value not only by saving time, but also by preventing costly errors.

The CVKY-G123 barcode laser scanner is proudly brought to you by the leaders in factory direct wholesale electronics, Chinavasion.

At a Glance...

• Bar code Scanner
• UPC, UPC-E Codabar
• Efficiency and Reliability
• USB Cable, 2 meters long
• Organized Your Inventory & Warehouse

Manufacturer Specifications

• Primary Function: Bar code Scanner
• Type: 650nm Visible Red Laser
• Usage: Handheld or mounted
• Processor: 32-bit ARM
• Smart AGC control
• Multiple code pages (configurable)
• Error Rate: 1 in 5 Million
• Connectivity: USB Port
• Resolution
  - (pcs0.9) 0.10mm(4mil)
  - Configurable Depth: 15-800mm (pcs0.9)
• Speed: 58 scans per second
• Vertical scanning angle: 60'
• Horizontal scanning angle: 45'
• Idle power usage: 36mA
• Maximum environmental light when scanning: 6000Lux - EM interference resistance: en50081, par1 standard
• Indicators (LED): Two-color LED (red & blue)
• Beeper Operation: Programmable tone & beep time
• System Interfaces: Keyboard, USB
• Power: 5V DC 57mA (via USB port)
• Usage Environment
  - Operating Temperature: 0 to 40 degree Celsius (32 degree F to 104 degree F)
  - Storage Temperature: -20 to 60 degree Celsius (-4 degree F 140 degree F)
  - Humidity: 5% 95% RH (non-condensing)
  - Light Levels: Max. 4,000 Lux, Min. 1.0 Lux
• Decoding Capability*: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI
• Setup Category Keys Using Your PC Keyboard:
  - F1 key - Interface
  - F2 key - Decoders/Scanners
  - F3 key - Editing
  - F4 key - Macros/Special Keys
  - F5 key - String
  - F6 key -Reserved
  - F7 key - Buzzer/LED
  - F8 key - Status/Diagnostics
  - F10 key - Cloning
  - F11 key - Reset
• Editing Key Using Your PC Keyboard:
  - Left/Right Arrow
  - Up & Down Arrows
  - CTRL UP & Down Arrow
  - Home & END
  - ALT Backspace
  - CTRL + Keypad
  - CTRL - Keypad
  - CTRL F7
  - CTRL F10
  - Shift F10
  - ALT F10
  - CTRL + Space
  - Shift + Space
  - ALT + ESC
• Material: Hard Molded Plastic
• Dimensions
  - Handheld Bar code Scanner - L:160 x W:65 x D:90 (mm)
  - Barcode Scanner Stand - L:195 x W:140 x H:190 (mm)
• Manufacturers Ref: BRASNN61SER9

Product Notes

• Wired bar code scanner, connect to your PC USB port using the USB cable provided
• A great way to keep track of your pallets
• Excellent for keeping inventory in check and organized
• Excellent response rate, increases productivity and eliminates delays

Package Contents for Model CVKY-G123

• Barcode Scanner
• Bar Code Scanner Stand
• User Manual - English
