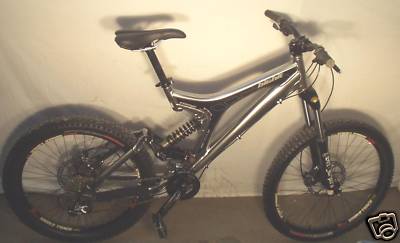

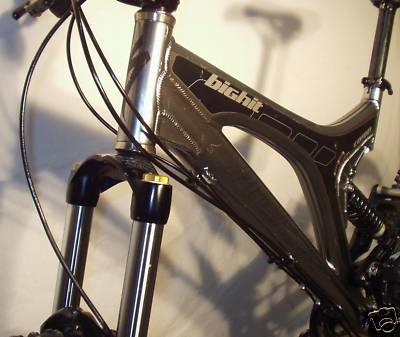

2004 Specialized BIG HIT

Medium

Used, in excellent condition.

Downhill Mountain Bike

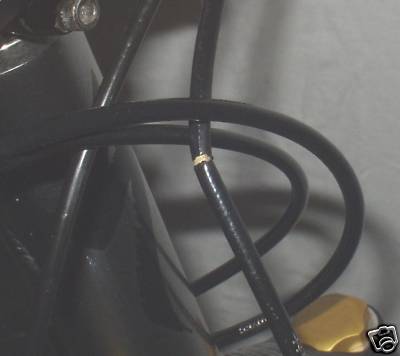

This Bike has only seen about 1 Season of regular use and has been in storage for the last 2 or 3 years.  Very little cosmetic issues show that the bike is in very nice shape and has seen very little use.  The rear derailleur has been replaced and the front brake line needs replacement which will then need to be blead.  Other than this issue the bike is in perfect riding condition.   I would advise the buyer to have a Specialized shop reassemble the bike after shipping to insure a proper tune and best riding experience.  Lots of luck and happy bidding.

Features: BIG HIT FSR

• 7.5 or 6.2 inches of plush FSR travel. TransForm Monocoque keeps things beefy and stiff while the ISCG-compatible bottom bracket tabs provide slip-free chain guide mounting while the asymmetrical rear triangle optimizes chainline. 4-position adjustable travel/head angle DH link, 3-position spring rate progression adjustment, full sealed cartridge bearing pivots.
• New Roller Pro RS 2.3" tires in a medium compound combine killer traction with decreased rolling resistance. Cap Ply casing and light aramid bead.
• Highly durable wheelset: Stout thru-axle front hub and Shimano rear are laced to Sun singletrack rims with 14 gauge DT spokes.
• TruVativ Holzfeller 7050 crank is beefy and sports a full complement of three rings. (Yup, even with 7.5" of travel and full gears. No shuttle required.) Extra bash guard included for when things get technical. GigaPipe DH BB.

Specifications:

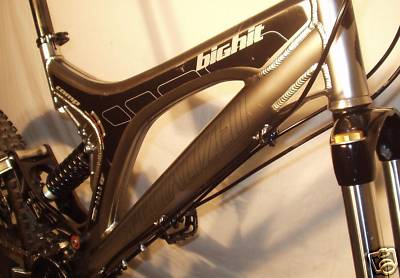

FRAME: BIG HIT FSR
FSR technology, A1 Premium Aluminum TransForm Monocoque frame, asymmetrical 6mm offset rear triangle, 4-position adjustable travel/head angle standard link, 3-position spring rate progression adjust, full sealed cartridge bearing pivots, replaceable derailleur hanger, 7.5" or 6.2" travel

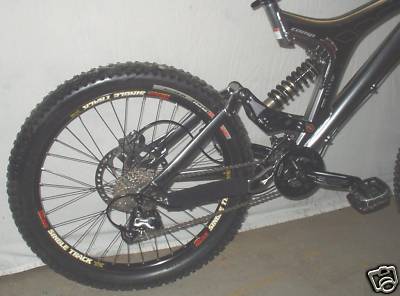

REAR SHOCK: BIG HIT FSR
Manitou Swinger 3-way, SPV position-sensitive damping, externally adjustable pedal platform and rebound 8.75 x 2.5"
FORK

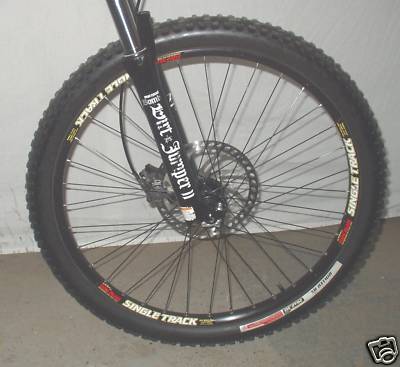

Marzocchi Dirt Jumper II, 150mm travel, air spring rate assistance, 20mm thru-axle
HEADSET
Cr-Mo, 1 1/8" threadless, all alloy and steel construction, loose ball bearing with seals
STEM
Truvativ Holzfeller forged/CNC stem, 5 degree x 40mm, black

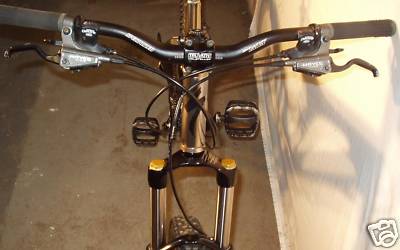

HANDLEBARS
Specialized BigHit rise bar, 6061 butted alloy, 31.8mm clamp, 6 degree upsweep, 9 degree backsweep, 670mm
TAPE / GRIPS
Specialized MTB grip, black, double density Kraton
FRONT BRAKE
Hayes HFX-9 full hydraulic disc, 8" rotor
REAR BRAKE
Hayes HFX-9 full hydraulic disc, 8" rotor
BRAKE LEVERS
Hayes HFX-9 full hydraulic disc
FRONT DERAILLEUR
Shimano M-570 LX, E-type, bottom pull
REAR DERAILLEUR

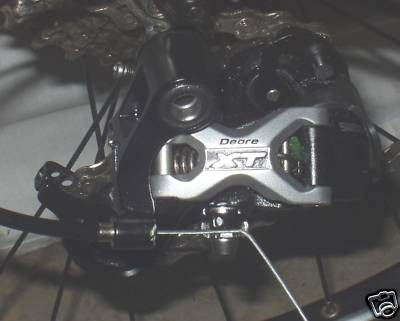

Shimano M-750 DeoreXT, short cage, standard spring, reverse pull.
SHIFT LEVERS
Shimano M-510 Deore
CASSETTE
Shimano HG-50 LX, 9-speed, 11x34t
CHAIN
Shimano HG-73
CRANKSET
Truvativ Holzfeller 7050, ISIS spline, 7050 alloy, 170mm
CHAINRINGS
32Sx22S, 4 bolt, compact 104/64mm pattern, 5mm thick 7050 alloy bash/rock guard
BOTTOM BRACKET
Truvativ ISIS Gigapipe 4 bearing DH, 73mm shell, 118mm spindle, E-Type
PEDALS
Alloy platform, 3mm pressed pins, 9/16" Cr-Mo axle
RIMS
Sun Single Track, 26" front, 24" rear, black, eyelets
FRONT HUB
Specialized Stout disc, 36 hole, cartridge bearings, 20mm alloy thru-axle
REAR HUB
Shimano M-525 disc, 36 hole, sealed loose ball bearings, alloy Q/R
SPOKES
DT Swiss, 2.0mm (14g) stainless, black, brass nipples, L258/R260mm front, L233/R231mm rear
FRONT TIRE
Specialized Roller RS 26 x 2.3" medium compound, aramid bead, Cap Ply reinforced casing
REAR TIRE
Specialized Roller RS 24 x 2.3" medium compound, aramid bead, Cap Ply reinforced casing
TUBES
Specialized 24" (R) / 26" (F) x 2.4/2.75", schraeder valve
SADDLE
Specialized BigHit, 8mm steel rails, X-Brace
SEAT POST
Alloy, black, 30.9 x 300mm for 8mm rails
SEAT BINDER
Alloy collar with Q/R, 34.9mm clamp I.D., black


Size	Small	Medium	Large
Stand Over Height	776mm	777mm	779mm
Top Tube Length	578mm	597mm	613mm
Head Tube Length	128mm	137mm	140mm
Head Angle	66.3/68.2	66.3/68.2	66.3/68.2
Seat Angle	61/63.1	61/63.1	61/63.1
Wheel Base	1130mm	1148mm	1164mm
Chain Stay Length	432mm	432mm	432mm
Fork Offset	42	42	42
Stem Length	55/67mm	55/67mm	55/67mm
H/B Width	670mm	670mm	670mm
Crank Length	170mm	170mm	170mm
BB Height	362/387	362/387	362/387
Seat Post Length	300mm	300mm	300mm



Size Spec's are highlighted in red in the chart above.
Please be sure this size bike is what you need.
The bike will be professionaly packed and shipped UPS Ground. Tracking information will be provided.
Buyer must have confoirmed pay-pal address in the US.

Sorry, I do not ship outside the Continental US.

All sales are final, No Returns, No Refunds.
Thanks!
