The enclosed Roto-Tran IV is a pressure transducer that provides a 4-20 mA signal over its labeled pressure range. The Roto-Tran IV comes in six different pressure choices that cover the pressure range from 0 - 300 PSI. This loop powered, temperature compensated device uses a piezo-electric sensing element.

The unit is constructed from 316L stainless steel and carries a NEMA 4X rating. Tank and pipe mounting can be accomplished by its integral, threaded pressure connection.

SPECIFICATIONS

Service: Compatible gasses and liquids

Wetted Materials: Type 316L Stainless Steel

Accuracy: 1% full scale (Includes linearity, hysteresis, and repeatability)

Temperature Limit: 0 to 200°F (-18 to 93°C)

Compensated Temperature Range: 0 to 175°F (-18 to 79°C)

Thermal Effect: +/-0.04% FS/°F (includes zero and span)

Pressure Limits: see table to the right

Power Requirements: 13 to 30 VDC

Output Signal: 4 to 20 mA

Response Time: 50 msec

Loop Resistance: 0 - 1300 ohms maximum

Current Consumption: 38 mA (maximum)

Electrical Connectioins: 3’ of Prewired Cable

Process Connection: 1/4" male NPT

Enclosure Rating: NEMA 4X (IP66)

Mounitng Orientation: Mount in any position

Weight: 10 oz. (283 g)

Agency Approvals: CE

ENCLOSED

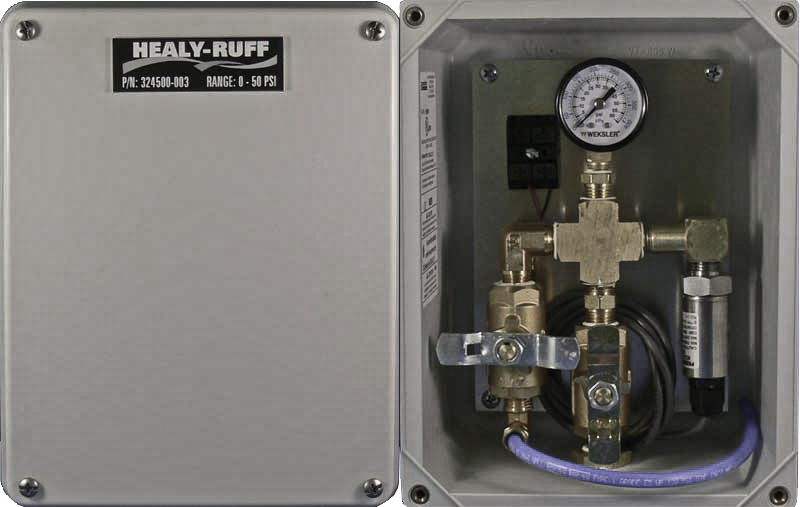

A NEMA 4X non-metallic enclosure houses the Roto-Tran IV pressure transducer, block and bleed valve and pressure gauge.

A terminal strip for field wiring is included. The pressure line connection to the block and bleed assembly is through a 1/4" female NPT bulkhead fitting located on the bottom of the enclosure
