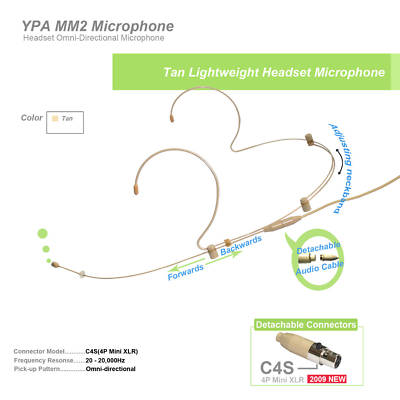

YPA MM2 Headset Mic For Wireless Microphone System
Available for SHURE, SENNHEISER, AKG and Audio-Technica |
Tan Color, Lightweight, Omnidirectional Condenser, Easy Exchangeable Connectors; |
|
Select your Mic
MM2-AMG Microphone
With Four Connector
Retail Price: $149.99
Discount Price: $ 99.99
MM2 Microphone
With One Connector
Retail Price: $99.99
Discount Price: $ 79.99
|
|
|
|
|
|
|
 |
Air Mail (20-30days) |
 |
Paypal |
 |
3 Months Money Back |
| Express ( 7-10days ) |
Moneybookers |
1 Year Exchange | |
What's included.
In the box
- MM2 Headset Microphone
- ONE Connector for MM2
- MMC1 Audio Cable (Length: 1.5M)
- MMC35 Audio Cable Clip
- MMW2 Foam Windshields (3 pairs)
- MM4B Carry Case
- Instructions for use
|
|
Connector Requirements ( Choose ONE Connector With $ 79.99 )
- C4S: use for SHURE PGX1/SC1/SLX1/ U1/ULX1/UR1/UT1, TOA WM4300 (MicroDot to TA4F 4 pin Female Switchcraft)
- C4SE: use for SENNHEISER Evolution/G2/G3, /X2 Digital Wireless Systems (MicroDot to 3.5mm Mini-Jack (with thread))
- C4A: use for AKG PT 60/80/81/ 400/4000 Samson UT1L, VT2L (MicroDot to TA-3F 3pin Female Switchcraft)
- C4T: use for Audio-Technica ATW-T1000 D/ ATW-T310/AEW-T1000/ATW-T701 (MicroDot to 4 pin Female Hirose)
|
|
|
MM2 at a glance.
 |
The smallest capsule
clean and transparent sound quality,3.5mm size,low sensitivity; |
|
|
|
|
|
Directional characteristics: |
Omnidirectional |
|
Principle of operation: |
Pressure |
|
Cartridge type: |
Back Electret Condenser |
|
Frequency range, ± 2 dB: |
50 Hz – 20 kHz |
|
Sensitivity, nominal, ±3 dB at 1 kHz: |
1 mV/Pa; -45 dB re. 1 V/Pa |
|
Equivalent noise level, A-weighted: |
Typ. 33 dB(A) re. 20 µPa (max. 37 dB(A)) |
|
Equiv. noise level ITU-R BS.468-4: |
Typ. 45 dB (max. 49 dB) |
|
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): |
61 dB(A) |
|
Total harmonic distortion (THD): |
< 1 % THD up to 123 dB SPL peak; < 1 % THD up to 120 dB SPL RMS sine |
|
Dynamic range: |
Typ. 90 dB |
|
Max. SPL, peak before clipping: |
135 dB |
|
Output impedance: |
30 – 40 ohm |
|
Cable drive capability: |
Up to 300 m (984 ft) |
|
Power supply: |
For wireless systems: Min. 1.5 V – max. 12 V through YPA adapter. |
|
Connector: |
MicroDot |
|
Color: |
Beige |
|
Microphone weight: |
22 g |
|
Microphone diameter: |
3.5 mm |
|
Cable length: |
1.5 m |
|
Cable diameter: |
1.6 mm |
|
Polarity: |
Positively increasing sound pressure produces positive going voltage on MicroDot pin |
|
Operating temperature range: |
-10 to 45°C (14 to 113°F) | |
 |
 |
 |
 | |
 |
Adjusting the microphone boom
For best possible comfort and optimum fit of the headmic,the neckband and the microphone boom have to be adjusted to properly fit your head; |
 |
The Detachable Cable
It is easy to be replaced new cable when broken.Attach the microphone cable to the cable grip easily; |
 |
The special ring on the boom
Avoid the sweat inpouring the capsule and mic is positioned at the corner of the mouth; |
|
|
Multiple Connectors
Four Connectors for choosing,For SHURE,SENNHEISER,AKG,AUDIO TECHNICA Wireless Microphone System;
|
| |
|
MM2 Microphone FAQs
|
|
How much is the shipping time?
Usually 20-30business days by Airmail, 7-10business days by Express.
What about Your Payment?
We Recommend you use PAYPAL as Payment,it is ebay company.
If i am not American,How can i buy?
We can ship to Worldwide,You also can buy the item from our ebay store,
the shipping cost is the same.you don't need to add extra fee. |
How about the repair policy by YPA microphone?
MM2 Series Microphone are offered 1 year FREE Repair,3 Months Return&Full Money Back.
Do I have to pay other fee?
There is no other fee except item price and postage.
What about Custom Tax?
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. |
 |
Question?Just Ask.Talk with us by ebay messages. |
|
|
|
|
|
|
