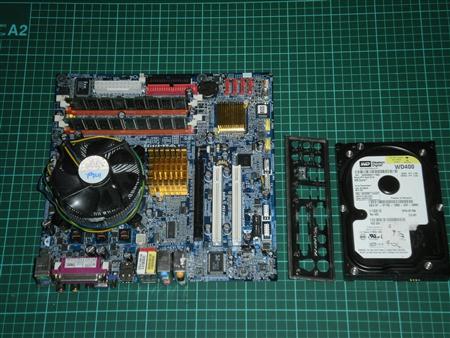

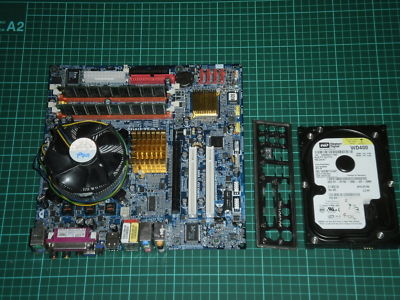

GA-8I915G-MF Motherboard 775 - CPU P4 3.4GHz HT - 1GB RAM - 16x PCIE- SATA - VGA - HDD 40GB 7200 RPM
- SAVE - Value For Money!

GA-8I915G-MF designed with pack of features and dedicated to satisfying the needs of cost-effective platforms. Experience next-generation processing with the latest LGA 775 Intel® Pentium® 4 Processor with Hyper-Threading Technolgy! The GA-8I915G-MF supports DDR 400 / 333 delivers complete range of usage from highest performance to cost-effective systems. The GA-8I915G-MF provides an broad range of peripheral connections by offering IEEE 1394a and USB 2.0 for high-speed data transfer, and high speed Serial ATA for connection of storage devices. The GA-8I915G-MF also offers multimedia advancements through PCI-Express for outstanding graphics output, doubling that of the current AGP8X interface. For improved networking, Gigabit LAN provides LAN connection at a blazing fast network connection speed of up to 1,000 Mbps. Along with top-notch hardware is the addition of the GIGABYTE Shieldware. Shieldware includes solid pack of unique software feature elements that are easy to use and focused on making computing both simple and straightforward. Finally to round off the GA-8I915G-MF is home theater-quality sound with your PC using Intel® High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability
CPU
LGA 775 for Pentium® 4 Processor
Chipset
Northbridge : Intel® 915G Southbridge : Intel® ICH6 Integrated Peripherals : T.I. IEEE1394 controller Realtek 8110S Gigabit Ethernet controller Realtek ALC880 audio codec
Front Side Bus
800 / 533 MHz FSB
Memory
Type: Dual Channel DDR 400/333 Max capacity: 4 GB DIMM slots: 4
Internal I/O Connectors
4 x Serial ATA connectors 2 x USB 2.0 connectors (4 ports by cable) 1 x FDD connector 1 x UltraDMA 100/66 IDE 1 x IEEE 1394 pin header (by optional cable) 2 x cooling fan pin headers 1 x CD in 1 x COM port connector 1 x 24-pin ATX Power connector 1 x 4-pin ATX 12V Power connector
Expansion Slots
1 x PCIe X 16 slot 1 x PCIe X 1 slot 2 x PCI slots
Back Panel Connectors
4 x USB 2.0 ports 1 x RJ45 LAN port 6 x Audio jacks (Line Out / Line-in / Mic in) 1 x VGA port 1 x LPT port 2 x PS/2 ports(Keyboard/Mouse) 2 x S/P DIF jacks (in/Out)
Form Factor
u-ATX 24.4cm x 24.4cm
H/W Monitoring
ITE 8712F System health status auto-detect and report by BIOS Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
BIOS
1 x 2M bit flash ROM
Other Features
M.I.T. (Motherboard Intelligent Tweaker) Download Center S.O.S. (System Overclock Saver) C.O.M. (Corporate Online Management) Miracle of Xpress3 |
