CNC Machined from Solid Billet 6061-T6 Aircraft Quality Aluminum Body
Matte Black Hard Anodized
MIL-STD810G Qualified meets Military Standards for Temperature Range, Thermal Shock, Waterproof, Shock and Recoil Resistance
Scratch Resistant Multi-Coated Lens
Rugged Construction for Extreme Duty
Compliant with Green Manufacturing Standards

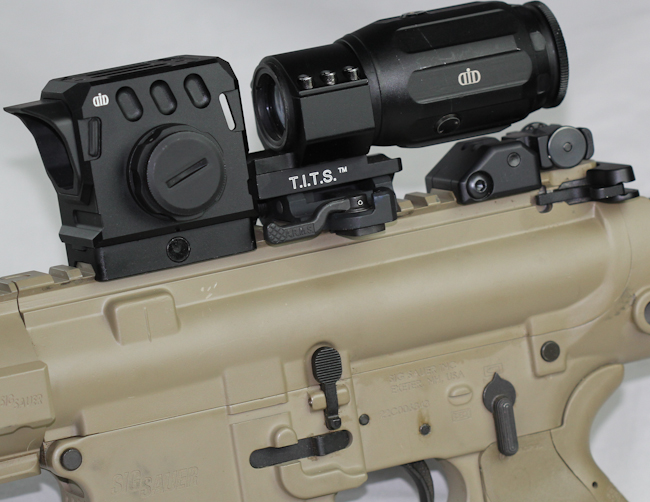

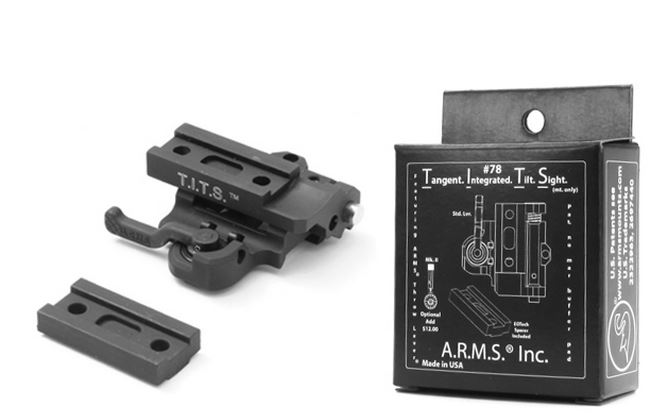

A.R.M.S. #78A Tangent Integrated Tilt Sight Mount with DI 3X Adapter

The universal design allows the optic/magnifier to tilt to either the left or right depending on which side the lever is on to accommodate left or right hand shooters.

With the #78 on the receiver, simply pull back and tilt the optic/magnifier into place, release and the mount will lock in the selected position.

Comes with the Std. A.R.M.S. Throw Lever.

Objective Lens	23mm
Eye Relief (Inch)	2.5”
Overall Dimensions (mm)	95 x 40 x 70 (L x W x H)
Storage Temperature Range	-41 ~ +71C (-42 ~ 160F)
Military Specification Conformity	Passed MIL-STD810G Environmental Testing
Eye Piece Lens	30mm
Magnification	3X
Weight	336g / 11.8 Oz
Operating Temperature	-32 ~ 71C (-25.6 ~ 160F)
Mount	MIL-STD 1913 Rail
Adjustment Range	100 Clicks
Compatibility	Compatible with A.R.M.S #78 T.I.T.STM
Waterproof	IP65 Splash Resistant
